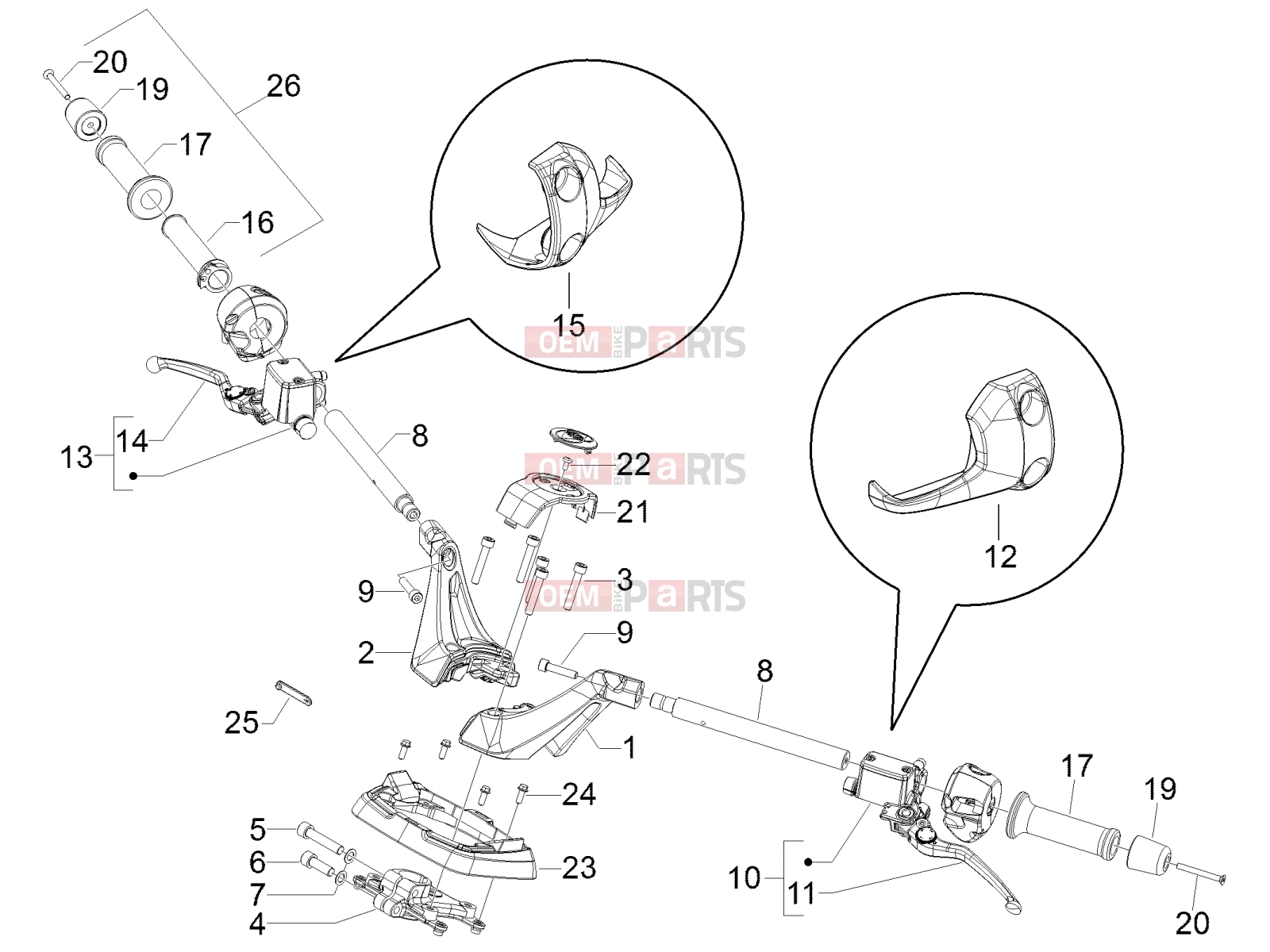

APRILIA SRV 850 Handlebars/Steering » Handlebars - Master cil.

APRILIA SRV 850 Handlebars/Steering » Handlebars - Master cil.
1
APRILIA SRV 850 653174 - Handlebar tube Left
653174 - Handlebar tube Left
2
APRILIA SRV 850 653175 - Handlebar tube Right
653175 - Handlebar tube Right
3
APRILIA SRV 850 5 pc - 654483 - Screw
654483 - 5 pc - Screw
4
APRILIA SRV 850 653343 - Half-handlebar support
653343 - Half-handlebar support
5
APRILIA SRV 850 583480 - Screw
583480 - Screw
6
APRILIA SRV 850 564632 - Screw (spec)
564632 - Screw (spec)
7
APRILIA SRV 850 10 pc - 012543 - Washer (spring)
012543 - 10 pc - Washer (spring)
8
APRILIA SRV 850 654203 - Handlebar insert
654203 - Handlebar insert
9
APRILIA SRV 850 4 pc - 654484 - Screw
654484 - 4 pc - Screw
10
APRILIA SRV 850 668420 - Master cil. L.H. (ABS)
668420 - Master cil. L.H. (ABS)
10
APRILIA SRV 850 650714 - Brake hydraulic pump Left
650714 - Brake hydraulic pump Left
11
APRILIA SRV 850 666050 - (Heng Tong) Left brake lever
666050 - (Heng Tong) Left brake lever
12
APRILIA SRV 850 650965 - LH pump cover
650965 - LH pump cover
13
APRILIA SRV 850 668419 - RH brake pump (ABS)
668419 - RH brake pump (ABS)
13
APRILIA SRV 850 650715 - (Heng Tong) Right brake pump
650715 - (Heng Tong) Right brake pump
13
APRILIA SRV 850 668419 - RH brake pump (ABS)
668419 - RH brake pump (ABS)
14
APRILIA SRV 850 666049 - Brake lever (Heng Tong)
666049 - Brake lever (Heng Tong)
15
APRILIA SRV 850 650966 - RH pump cover
650966 - RH pump cover
16
APRILIA SRV 850 975633 - Throttle grip
975633 - Throttle grip
17
APRILIA SRV 850 497663 - Grip
497663 - Grip
19
APRILIA SRV 850 674860 - Terminal
674860 - Terminal
20
APRILIA SRV 850 1B006376 - Screw
1B006376 - Screw
21
APRILIA SRV 850 656512 - Upper handlebar cover
656512 - Upper handlebar cover
21
APRILIA SRV 850 6565120090 - Upper handlebar cover
6565120090 - Upper handlebar cover
22
APRILIA SRV 850 1A003111 - Screw
1A003111 - Screw
23
APRILIA SRV 850 65316960BM - Handlebar lower frame
65316960BM - Handlebar lower frame
23
APRILIA SRV 850 65316900XN2 - Handlebar lower frame
65316900XN2 - Handlebar lower frame
23
APRILIA SRV 850 653169 - Handlebar lower frame (unpainted)
653169 - Handlebar lower frame (unpainted)
24
APRILIA SRV 850 10 pc - B016777 - Screw
B016777 - 10 pc - Screw
25
APRILIA SRV 850 2 pc - 860744 - Clamp
860744 - 2 pc - Clamp
26
APRILIA SRV 850 668222 - Right control complete with accelerator
668222 - Right control complete with accelerator
26
APRILIA SRV 850 668615 - Right control complete with accelerator ABS
668615 - Right control complete with accelerator ABS
