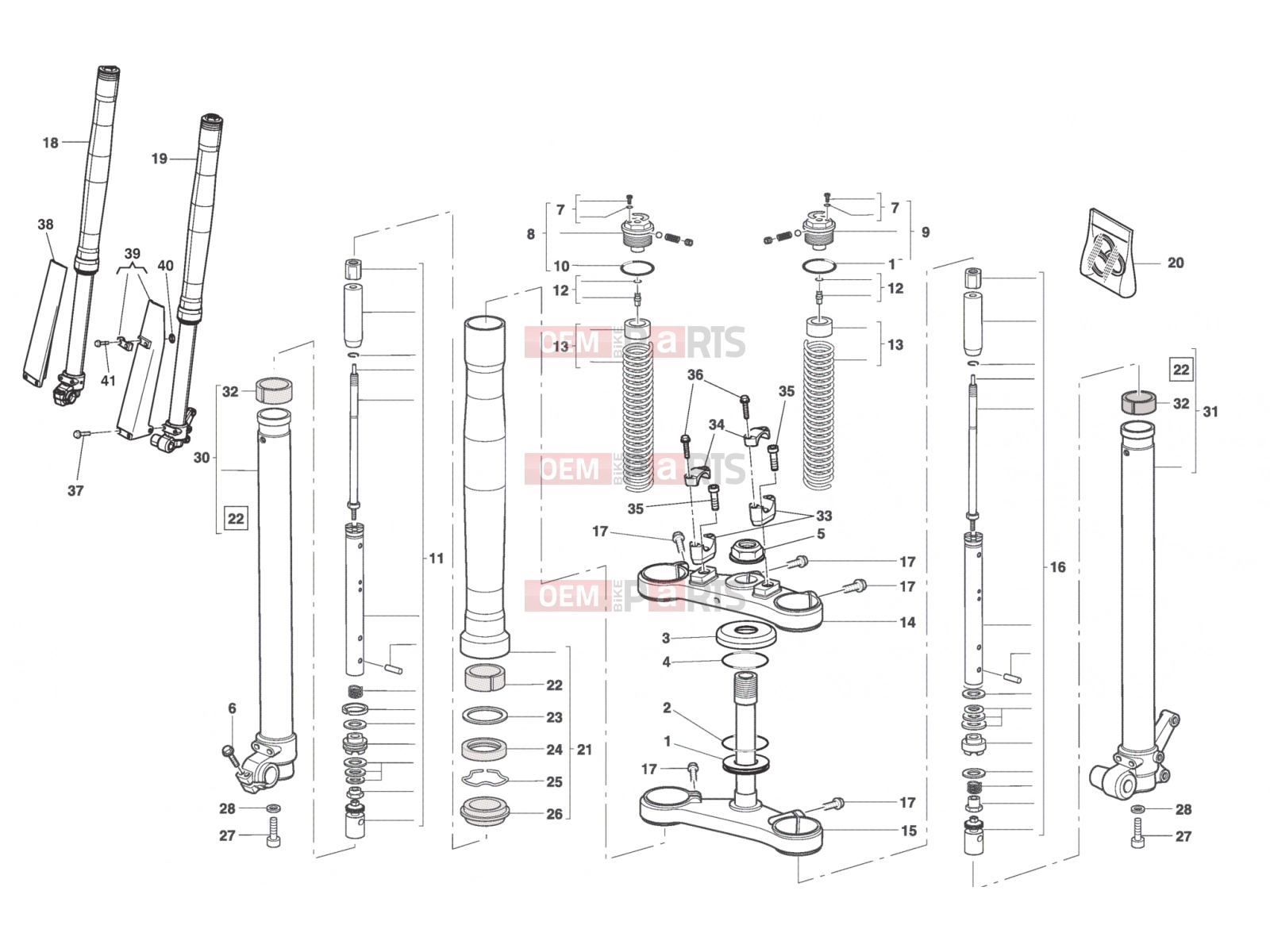

HUSQVARNA 2012 CR 65 FRONT FORK ASSEMBLY

HUSQVARNA 2012 CR 65 FRONT FORK ASSEMBLY
1
HUSQVARNA 2012 CR 65 8000H3616 - BUSSOLA INFERIORE CANNOTTO
8000H3616 - BUSSOLA INFERIORE CANNOTTO
2
HUSQVARNA 2012 CR 65 8000H3618 - O-RING 36X3
8000H3618 - O-RING 36X3
3
HUSQVARNA 2012 CR 65 8000H3617 - BUSH COVER, UPPER
8000H3617 - BUSH COVER, UPPER
4
HUSQVARNA 2012 CR 65 8000H3619 - O-RING 40,94X2,62
8000H3619 - O-RING 40,94X2,62
5
HUSQVARNA 2012 CR 65 8000H3820 - Nut
8000H3820 - Nut
6
HUSQVARNA 2012 CR 65 8000H7352 - Screw
8000H7352 - Screw
7
HUSQVARNA 2012 CR 65 800084702 - Screw
800084702 - Screw
8
HUSQVARNA 2012 CR 65 7701204AC - PLUG R/S CPL.
7701204AC - PLUG R/S CPL.
9
HUSQVARNA 2012 CR 65 7701205AC - PLUG L/S CPL.
7701205AC - PLUG L/S CPL.
10
HUSQVARNA 2012 CR 65 8000H7338 - O-Ring
8000H7338 - O-Ring
11
HUSQVARNA 2012 CR 65 8000H7355 - ROD ASSY
8000H7355 - ROD ASSY
12
HUSQVARNA 2012 CR 65 7850652 - PIN + O-RING
7850652 - PIN + O-RING
13
HUSQVARNA 2012 CR 65 8000H7339 - SPRINGS+PRELOAD SLEEVES KIT
8000H7339 - SPRINGS+PRELOAD SLEEVES KIT
14
HUSQVARNA 2012 CR 65 7501478 - TOP TRIPLE CLAMP
7501478 - TOP TRIPLE CLAMP
15
HUSQVARNA 2012 CR 65 77051116 - BOT.TRIPLE CLAMP + FORK TUBE
77051116 - BOT.TRIPLE CLAMP + FORK TUBE
16
HUSQVARNA 2012 CR 65 8000H7356 - ROD ASSY
8000H7356 - ROD ASSY
17
HUSQVARNA 2012 CR 65 0025080306 - Screw
0025080306 - Screw
18
HUSQVARNA 2012 CR 65 8000H7357 - RH COMPLETE LEG, D.35
8000H7357 - RH COMPLETE LEG, D.35
19
HUSQVARNA 2012 CR 65 8000H7358 - LH COMPLETE LEG, D.35
8000H7358 - LH COMPLETE LEG, D.35
20
HUSQVARNA 2012 CR 65 8000H7359 - REPAIR KIT
8000H7359 - REPAIR KIT
21
HUSQVARNA 2012 CR 65 8000H7343 - OUTER TUBE UNIT
8000H7343 - OUTER TUBE UNIT
22
HUSQVARNA 2012 CR 65 8000H7344 - UPPER BUSHING DIA.35
8000H7344 - UPPER BUSHING DIA.35
23
HUSQVARNA 2012 CR 65 7539032AA - WASHER 36X47X3
7539032AA - WASHER 36X47X3
24
HUSQVARNA 2012 CR 65 7528034 - OIL SEAL 35X47X10
7528034 - OIL SEAL 35X47X10
25
HUSQVARNA 2012 CR 65 7523236 - Washer (Lock)
7523236 - Washer (Lock)
26
HUSQVARNA 2012 CR 65 7533167 - Fork dust seal
7533167 - Fork dust seal
27
HUSQVARNA 2012 CR 65 8000H7354 - Screw
8000H7354 - Screw
28
HUSQVARNA 2012 CR 65 8000H7353 - Washer
8000H7353 - Washer
30
HUSQVARNA 2012 CR 65 8000H7349 - R.H.DROP OUT+STANC.TUBE+BUSH.
8000H7349 - R.H.DROP OUT+STANC.TUBE+BUSH.
31
HUSQVARNA 2012 CR 65 8000H7350 - L.H.DROP OUT+STANC.TUBE+BUSH.
8000H7350 - L.H.DROP OUT+STANC.TUBE+BUSH.
32
HUSQVARNA 2012 CR 65 7538029 - GUIDE RING D=35
7538029 - GUIDE RING D=35
33
HUSQVARNA 2012 CR 65 8000H4874 - LOWER SUPPORT
8000H4874 - LOWER SUPPORT
34
HUSQVARNA 2012 CR 65 8000H4875 - UPPER SUPPORT
8000H4875 - UPPER SUPPORT
35
HUSQVARNA 2012 CR 65 60ND02583 - Screw
60ND02583 - Screw
36
HUSQVARNA 2012 CR 65 60ND02557 - Screw
60ND02557 - Screw
37
HUSQVARNA 2012 CR 65 8000A8423 - Screw
8000A8423 - Screw
38
HUSQVARNA 2012 CR 65 8000H4908 - GUARD RH COLOUR CODE G BLACK
8000H4908 - GUARD RH COLOUR CODE G BLACK
39
HUSQVARNA 2012 CR 65 8000H4909 - GUARD LH COLOUR CODE G BLACK
8000H4909 - GUARD LH COLOUR CODE G BLACK
40
HUSQVARNA 2012 CR 65 Z00061355 - Nut (Lock)
Z00061355 - Nut (Lock)
41
HUSQVARNA 2012 CR 65 ZA0067997 - Screw
ZA0067997 - Screw

HUSQVARNA 2012 CR 65 FRONT FORK ASSEMBLY
