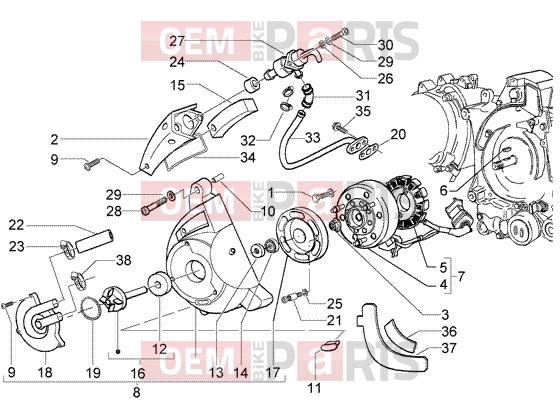

PIAGGIO Engine » Flywheel magneto

PIAGGIO Engine » Flywheel magneto
2
PIAGGIO 4 pc - 831255 - Cover
831255 - 4 pc - Cover
3
PIAGGIO B015804 - Crankshaft nut
B015804 - Crankshaft nut
4
PIAGGIO 584689 - Rotor cpl.
584689 - Rotor cpl.
4
PIAGGIO 584689 - Rotor cpl.
584689 - Rotor cpl.
5
PIAGGIO 584690 - Stator
584690 - Stator
5
PIAGGIO 584690 - Stator
584690 - Stator
6
PIAGGIO 000267 - Woodruff key
000267 - Woodruff key
7
PIAGGIO 58141R - Stator
58141R - Stator
7
PIAGGIO 58141R - Stator
58141R - Stator
8
PIAGGIO 8482585 - Flywheel cover with water pump
8482585 - Flywheel cover with water pump
8
PIAGGIO 8482585 - Flywheel cover with water pump
8482585 - Flywheel cover with water pump
9
PIAGGIO 10 pc - 828662 - Screw
828662 - 10 pc - Screw
10
PIAGGIO 10 pc - 277916 - Dowel pin
277916 - 10 pc - Dowel pin
11
PIAGGIO 10 pc - 825529 - Cover
825529 - 10 pc - Cover
12
PIAGGIO 82991R - Water pump mechanical seal (30 mm)
82991R - Water pump mechanical seal (30 mm)
12
PIAGGIO 497486 - Water pump mechanical seal (20 mm)
497486 - Water pump mechanical seal (20 mm)
13
PIAGGIO 497486 - Water pump mechanical seal (20 mm)
497486 - Water pump mechanical seal (20 mm)
14
PIAGGIO 82772R - Bearing
82772R - Bearing
15
PIAGGIO 30 pc - 831257 - Filter
831257 - 30 pc - Filter
16
PIAGGIO 841333 - Water pump shaft assy.
841333 - Water pump shaft assy.
17
PIAGGIO 872908 - Pump impeller drive key
872908 - Pump impeller drive key
18
PIAGGIO 486237 - Water pump cover
486237 - Water pump cover
19
PIAGGIO 485080 - Gasket - water pump
485080 - Gasket - water pump
20
PIAGGIO 5 pc - 832059 - Gasket
832059 - 5 pc - Gasket
21
PIAGGIO 82869R - Special screw
82869R - Special screw
22
PIAGGIO 878666 - Water hose
878666 - Water hose
22
PIAGGIO 841373 - Water hose
841373 - Water hose
24
PIAGGIO 831256 - Gasket ring
831256 - Gasket ring
25
PIAGGIO 828535 - Washer
828535 - Washer
26
PIAGGIO 006078 - Washer
006078 - Washer
27
PIAGGIO 82996R - SAS valve
82996R - SAS valve
28
PIAGGIO 20 pc - 828493 - Screw
828493 - 20 pc - Screw
29
PIAGGIO 30 pc - 006965 - Washer
006965 - 30 pc - Washer
30
PIAGGIO 50 pc - 296458 - Screw
296458 - 50 pc - Screw
31
PIAGGIO 831259 - s.a.s. joint pipe
831259 - s.a.s. joint pipe
32
PIAGGIO CM001904 - Clamp
CM001904 - Clamp
33
PIAGGIO 831260 - pipe
831260 - pipe
34
PIAGGIO 831258 - Gasket
831258 - Gasket
35
PIAGGIO 10 pc - B016426 - Screw
B016426 - 10 pc - Screw
36
PIAGGIO 834153 - Soundproofing material
834153 - Soundproofing material
37
PIAGGIO 834119 - Cover
834119 - Cover
38
PIAGGIO 10 pc - CM001908 - Clamp
CM001908 - 10 pc - Clamp

PIAGGIO Engine » Flywheel magneto
