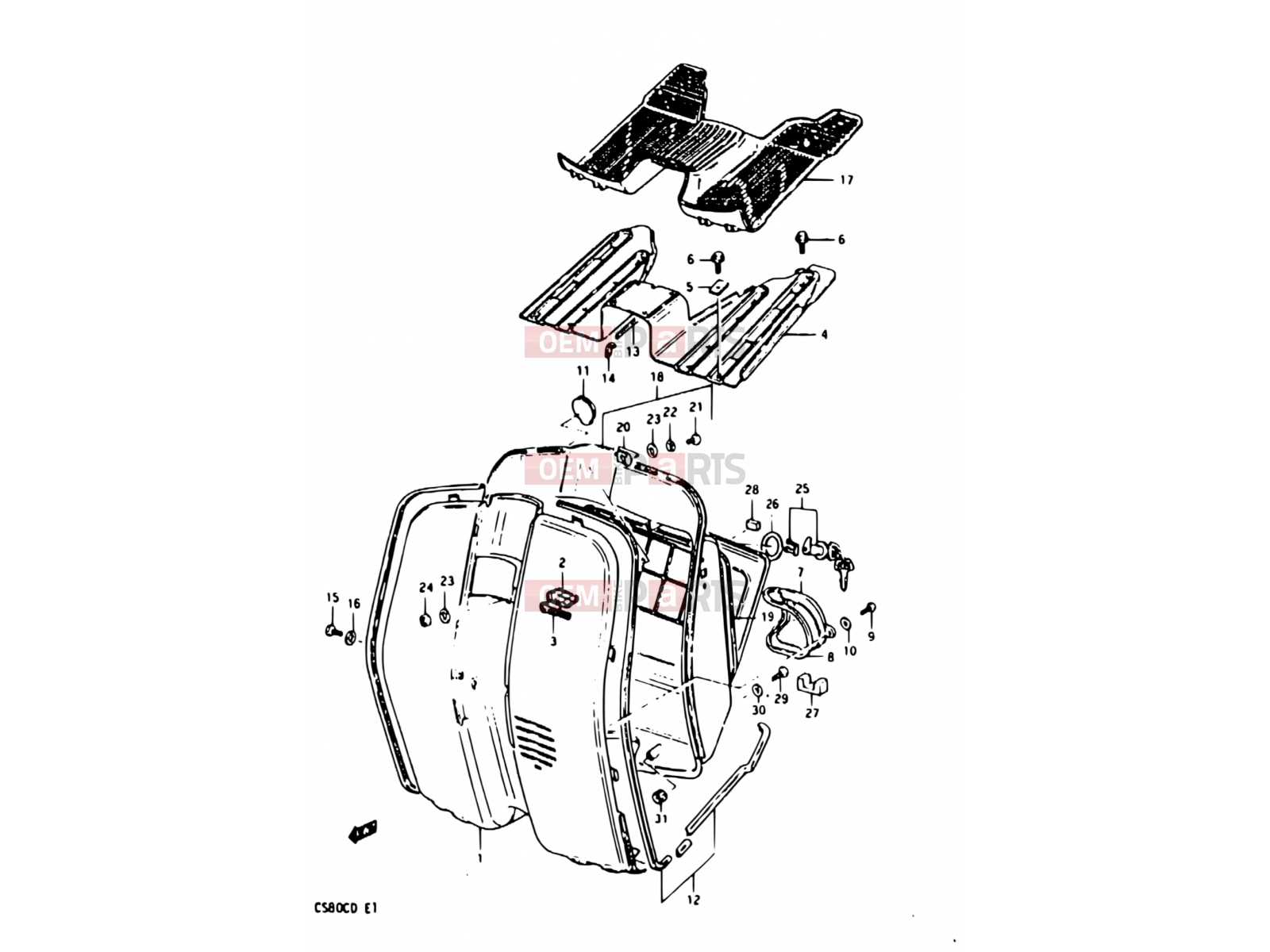

SUZUKI CS80C / CS80L D (1983) 39 - LEG SHIELD (E02, E17, E22)

SUZUKI CS80C / CS80L D (1983) 39 - LEG SHIELD (E02, E17, E22)
1
SUZUKI CS80C / CS80L D (1983) Leg shield, front (blue)
48111-02122-12F - Leg shield, front (blue)
1
SUZUKI CS80C / CS80L D (1983) Leg shield, front (white)
48111-02122-189 - Leg shield, front (white)
1
SUZUKI CS80C / CS80L D (1983) Leg shield, front (red)
48111-02122-07P - Leg shield, front (red)
2
SUZUKI CS80C / CS80L D (1983) Emblem
68161-02140 - Emblem
3
SUZUKI CS80C / CS80L D (1983) Emblem,
68162-02140 - Emblem, "custom"
4
SUZUKI CS80C / CS80L D (1983) Leg shield, rear
48121-07900 - Leg shield, rear
5
SUZUKI CS80C / CS80L D (1983) Plate, leg shield rear
48129-02120 - Plate, leg shield rear
6
SUZUKI CS80C / CS80L D (1983) 01550-0616B - Screw
01550-0616B - Screw
7
SUZUKI CS80C / CS80L D (1983) Cover, horn
48273-02140 - Cover, horn
8
SUZUKI CS80C / CS80L D (1983) Mold, horn cover
48274-02140 - Mold, horn cover
9
SUZUKI CS80C / CS80L D (1983) 03141-0412A - Screw
03141-0412A - Screw
9
SUZUKI CS80C / CS80L D (1983) 03211-0412A - Screw
03211-0412A - Screw
10
SUZUKI CS80C / CS80L D (1983) 08322-01047 - Washer
08322-01047 - Washer
11
SUZUKI CS80C / CS80L D (1983) Grommet
48242-02100 - Grommet
12
SUZUKI CS80C / CS80L D (1983) 48100-02860 - Moul set,leg sh
48100-02860 - Moul set,leg sh
13
SUZUKI CS80C / CS80L D (1983) Protector, no.1
48135-02100 - Protector, no.1
14
SUZUKI CS80C / CS80L D (1983) Protector, no.2
48136-02100 - Protector, no.2
15
SUZUKI CS80C / CS80L D (1983) 01550-0616B - Screw
01550-0616B - Screw
16
SUZUKI CS80C / CS80L D (1983) 09160-06066 - Washer
09160-06066 - Washer
17
SUZUKI CS80C / CS80L D (1983) Mat, floor
43551-07910 - Mat, floor
18
SUZUKI CS80C / CS80L D (1983) Box assy, front (white)
92100-02140-189 - Box assy, front (white)
18
SUZUKI CS80C / CS80L D (1983) Box assy, front (blue)
92100-02140-12F - Box assy, front (blue)
19
SUZUKI CS80C / CS80L D (1983) .moul, front box
92114-02110 - .moul, front box
20
SUZUKI CS80C / CS80L D (1983) .plate, front box
92116-02110 - .plate, front box
21
SUZUKI CS80C / CS80L D (1983) 02112-3616A - Screw
02112-3616A - Screw
21
SUZUKI CS80C / CS80L D (1983) 02112-0616A - Screw
02112-0616A - Screw
22
SUZUKI CS80C / CS80L D (1983) 08321-01067 - Washer
08321-01067 - Washer
23
SUZUKI CS80C / CS80L D (1983) 08322-0106A - Washer
08322-0106A - Washer
24
SUZUKI CS80C / CS80L D (1983) 08310-00067 - Nut
08310-00067 - Nut
25
SUZUKI CS80C / CS80L D (1983) 92130-02110 - Lock,center box
92130-02110 - Lock,center box
26
SUZUKI CS80C / CS80L D (1983)
92115-06400 -
27
SUZUKI CS80C / CS80L D (1983) Seal, box hinge
92118-02110 - Seal, box hinge
28
SUZUKI CS80C / CS80L D (1983) Cushion, upper
92119-02100 - Cushion, upper
29
SUZUKI CS80C / CS80L D (1983) 03111-0512A - Screw
03111-0512A - Screw
30
SUZUKI CS80C / CS80L D (1983) 08322-0105B - Washer
08322-0105B - Washer
31
SUZUKI CS80C / CS80L D (1983) Nut
48279-02100 - Nut

SUZUKI CS80C / CS80L D (1983) 39 - LEG SHIELD (E02, E17, E22)
