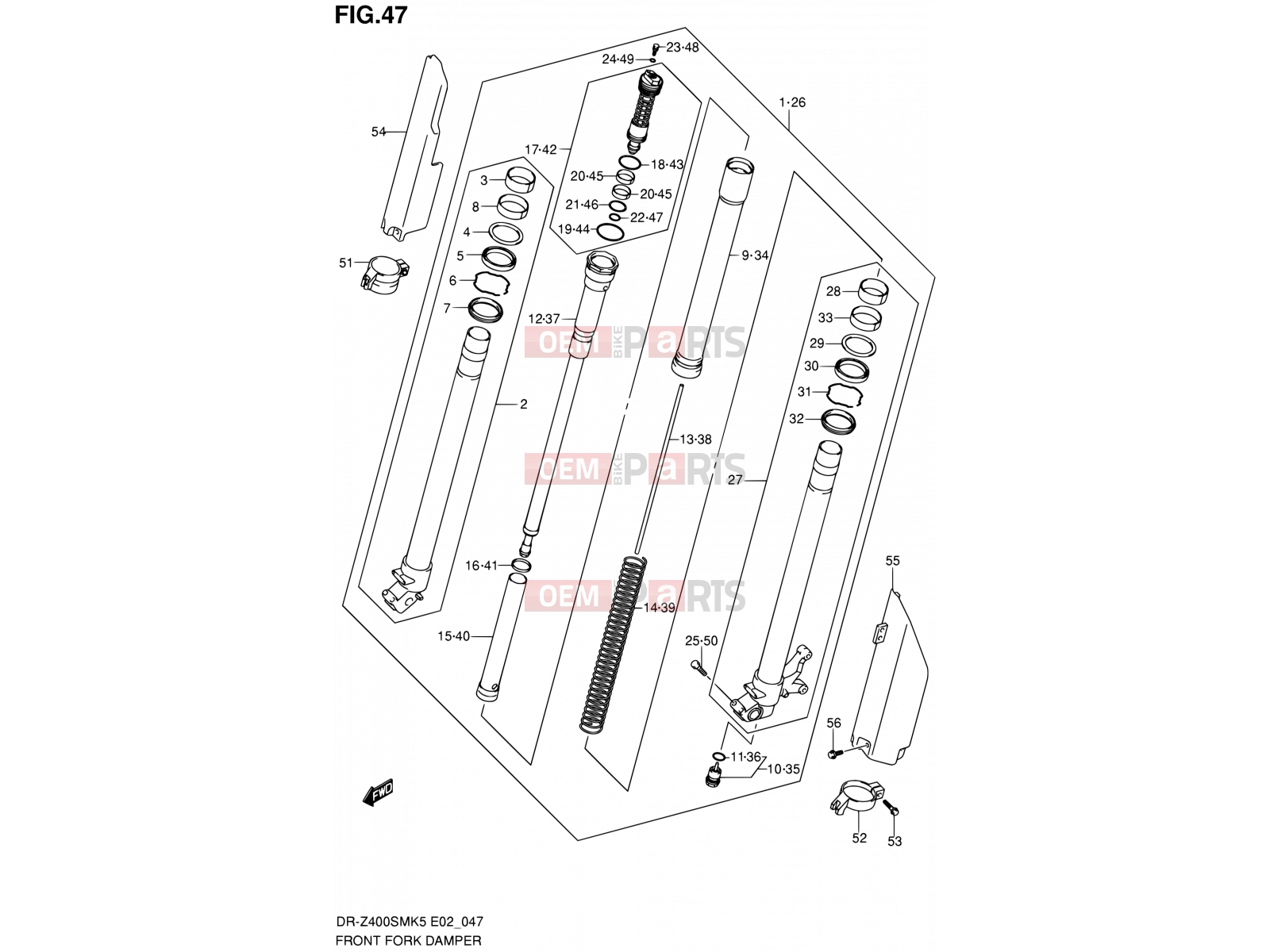

SUZUKI DR-Z400SM K5 (2005) (E19) 47 - FRONT FORK DAMPER

SUZUKI DR-Z400SM K5 (2005) (E19) 47 - FRONT FORK DAMPER
1
SUZUKI DR-Z400SM K5 (2005) (E19) 51103-29F70 - Damper assy,fro
51103-29F70 - Damper assy,fro
2
SUZUKI DR-Z400SM K5 (2005) (E19) 51110-29F70 - Tube,inner,r
51110-29F70 - Tube,inner,r
3
SUZUKI DR-Z400SM K5 (2005) (E19) 51167-36F00 - Bush,guide
51167-36F00 - Bush,guide
4
SUZUKI DR-Z400SM K5 (2005) (E19) 51158-36F00 - Spacer,seal
51158-36F00 - Spacer,seal
5
SUZUKI DR-Z400SM K5 (2005) (E19) 51153-37F80 - Fork oil seal
51153-37F80 - Fork oil seal
6
SUZUKI DR-Z400SM K5 (2005) (E19) 51156-27C40 - Ring,oil seal
51156-27C40 - Ring,oil seal
7
SUZUKI DR-Z400SM K5 (2005) (E19) 51173-37F80 - Fork dust seal
51173-37F80 - Fork dust seal
8
SUZUKI DR-Z400SM K5 (2005) (E19) 51121-36F00 - Bush,slide
51121-36F00 - Bush,slide
9
SUZUKI DR-Z400SM K5 (2005) (E19) 51130-29F70 - Tube,outer
51130-29F70 - Tube,outer
10
SUZUKI DR-Z400SM K5 (2005) (E19) 51170-37F70 - Bolt,center
51170-37F70 - Bolt,center
11
SUZUKI DR-Z400SM K5 (2005) (E19) 51177-36E20 - O-Ring
51177-36E20 - O-Ring
12
SUZUKI DR-Z400SM K5 (2005) (E19) 51190-29F70 - Damper
51190-29F70 - Damper
13
SUZUKI DR-Z400SM K5 (2005) (E19) 51191-29F70 - Push rod
51191-29F70 - Push rod
14
SUZUKI DR-Z400SM K5 (2005) (E19) 51171-29F70 - Spring,front
51171-29F70 - Spring,front
15
SUZUKI DR-Z400SM K5 (2005) (E19) 51198-37F70 - Collar,spring
51198-37F70 - Collar,spring
16
SUZUKI DR-Z400SM K5 (2005) (E19) 51178-29F70 - Spring seat
51178-29F70 - Spring seat
17
SUZUKI DR-Z400SM K5 (2005) (E19) 51351-29F70 - Bolt,fork
51351-29F70 - Bolt,fork
18
SUZUKI DR-Z400SM K5 (2005) (E19) 51117-37F80 - O-Ring
51117-37F80 - O-Ring
19
SUZUKI DR-Z400SM K5 (2005) (E19) 51118-37F80 - O-Ring
51118-37F80 - O-Ring
20
SUZUKI DR-Z400SM K5 (2005) (E19) 51123-28E30 - Bush,bolt slide
51123-28E30 - Bush,bolt slide
21
SUZUKI DR-Z400SM K5 (2005) (E19) 51174-36E40 - O ring
51174-36E40 - O ring
22
SUZUKI DR-Z400SM K5 (2005) (E19) 51175-36E20 - O ring
51175-36E20 - O ring
23
SUZUKI DR-Z400SM K5 (2005) (E19) 51357-36F20 - Bolt,plug
51357-36F20 - Bolt,plug
24
SUZUKI DR-Z400SM K5 (2005) (E19) 51358-28E30 - O ring,plug
51358-28E30 - O ring,plug
25
SUZUKI DR-Z400SM K5 (2005) (E19) 51166-35F00 - Screw
51166-35F00 - Screw
26
SUZUKI DR-Z400SM K5 (2005) (E19) 51104-29F70 - Damper assy,fro
51104-29F70 - Damper assy,fro
27
SUZUKI DR-Z400SM K5 (2005) (E19) 51120-29F70 - Tube,inner,l
51120-29F70 - Tube,inner,l
28
SUZUKI DR-Z400SM K5 (2005) (E19) 51167-36F00 - Bush,guide
51167-36F00 - Bush,guide
29
SUZUKI DR-Z400SM K5 (2005) (E19) 51158-36F00 - Spacer,seal
51158-36F00 - Spacer,seal
30
SUZUKI DR-Z400SM K5 (2005) (E19) 51153-37F80 - Fork oil seal
51153-37F80 - Fork oil seal
31
SUZUKI DR-Z400SM K5 (2005) (E19) 51156-27C40 - Ring,oil seal
51156-27C40 - Ring,oil seal
32
SUZUKI DR-Z400SM K5 (2005) (E19) 51173-37F80 - Fork dust seal
51173-37F80 - Fork dust seal
33
SUZUKI DR-Z400SM K5 (2005) (E19) 51121-36F00 - Bush,slide
51121-36F00 - Bush,slide
34
SUZUKI DR-Z400SM K5 (2005) (E19) 51130-29F70 - Tube,outer
51130-29F70 - Tube,outer
35
SUZUKI DR-Z400SM K5 (2005) (E19) 51170-37F70 - Bolt,center
51170-37F70 - Bolt,center
36
SUZUKI DR-Z400SM K5 (2005) (E19) 51177-36E20 - O-Ring
51177-36E20 - O-Ring
37
SUZUKI DR-Z400SM K5 (2005) (E19) 51190-29F70 - Damper
51190-29F70 - Damper
38
SUZUKI DR-Z400SM K5 (2005) (E19) 51191-29F70 - Push rod
51191-29F70 - Push rod
39
SUZUKI DR-Z400SM K5 (2005) (E19) 51171-29F70 - Spring,front
51171-29F70 - Spring,front
40
SUZUKI DR-Z400SM K5 (2005) (E19) 51198-37F70 - Collar,spring
51198-37F70 - Collar,spring
41
SUZUKI DR-Z400SM K5 (2005) (E19) 51178-29F70 - Spring seat
51178-29F70 - Spring seat
42
SUZUKI DR-Z400SM K5 (2005) (E19) 51351-29F70 - Bolt,fork
51351-29F70 - Bolt,fork
43
SUZUKI DR-Z400SM K5 (2005) (E19) 51117-37F80 - O-Ring
51117-37F80 - O-Ring
44
SUZUKI DR-Z400SM K5 (2005) (E19) 51118-37F80 - O-Ring
51118-37F80 - O-Ring
45
SUZUKI DR-Z400SM K5 (2005) (E19) 51123-28E30 - Bush,bolt slide
51123-28E30 - Bush,bolt slide
46
SUZUKI DR-Z400SM K5 (2005) (E19) 51174-36E40 - O ring
51174-36E40 - O ring
47
SUZUKI DR-Z400SM K5 (2005) (E19) 51175-36E20 - O ring
51175-36E20 - O ring
48
SUZUKI DR-Z400SM K5 (2005) (E19) 51357-36F20 - Bolt,plug
51357-36F20 - Bolt,plug
49
SUZUKI DR-Z400SM K5 (2005) (E19) 51358-28E30 - O ring,plug
51358-28E30 - O ring,plug
50
SUZUKI DR-Z400SM K5 (2005) (E19) 51166-35F00 - Screw
51166-35F00 - Screw
51
SUZUKI DR-Z400SM K5 (2005) (E19) 51220-36E61 - Guide,protect,r
51220-36E61 - Guide,protect,r
52
SUZUKI DR-Z400SM K5 (2005) (E19) 51210-36E61 - Guide,prtect.,l
51210-36E61 - Guide,prtect.,l
53
SUZUKI DR-Z400SM K5 (2005) (E19) 01547-06207 - Screw
01547-06207 - Screw
54
SUZUKI DR-Z400SM K5 (2005) (E19) 51501-29F70-YU1 - Protector,front
51501-29F70-YU1 - Protector,front
54
SUZUKI DR-Z400SM K5 (2005) (E19) 51501-29F70-30H - PROTECTOR,FRONT FORK,R
51501-29F70-30H - PROTECTOR,FRONT FORK,R
55
SUZUKI DR-Z400SM K5 (2005) (E19) 51511-29F70-YU1 - Protector,front
51511-29F70-YU1 - Protector,front
55
SUZUKI DR-Z400SM K5 (2005) (E19) 51511-29F70-30H - PROTECTOR,FRONT FORK,L
51511-29F70-30H - PROTECTOR,FRONT FORK,L
56
SUZUKI DR-Z400SM K5 (2005) (E19) 09103-06256 - Screw
09103-06256 - Screw

SUZUKI DR-Z400SM K5 (2005) (E19) 47 - FRONT FORK DAMPER
